Emergency communication products

Lobby station options

Lobby station also called as master is used for receiving call from slave or car station intercom. In 3 way connection one of this is kept in lobby and one in machine room while slave will be inside elevator car This can function in pair of master slave, two master can not communicate together

We have three varieties of lobby intercom

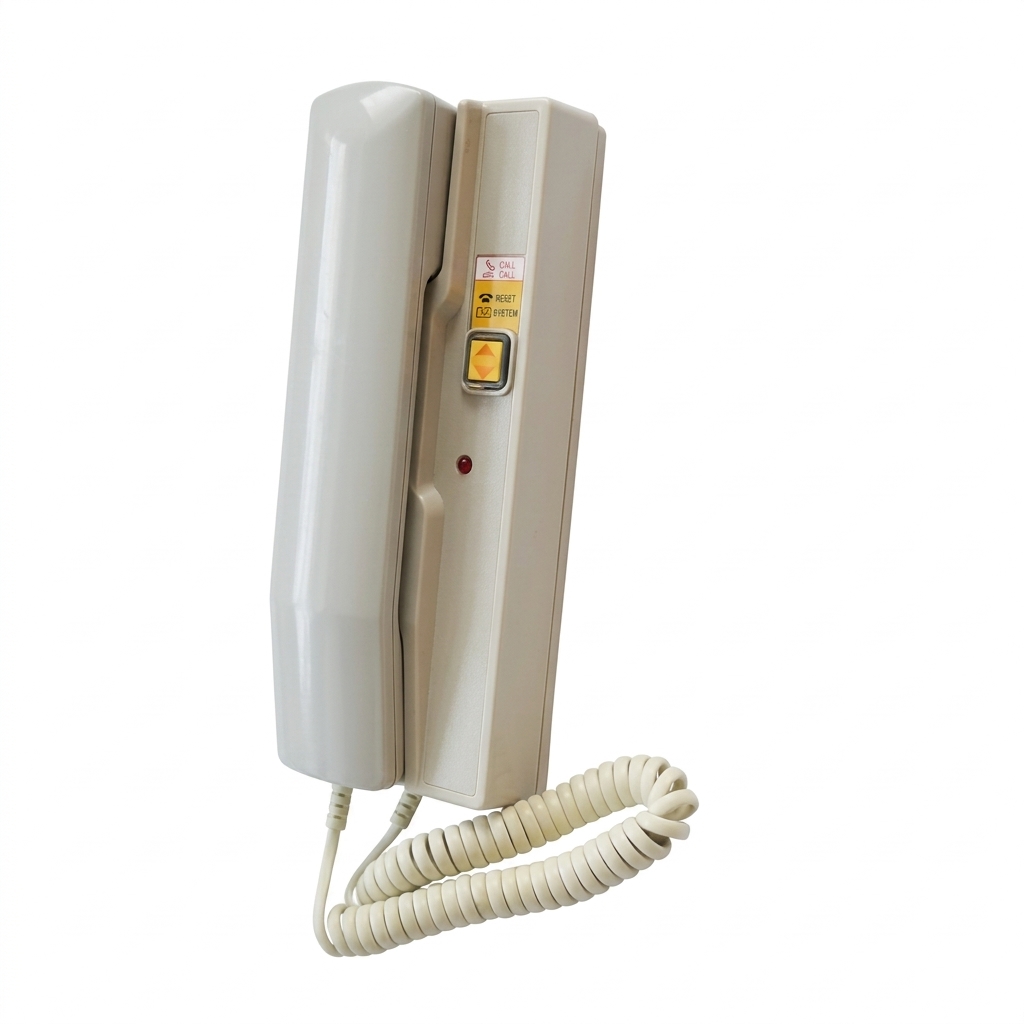

NKT 12 (1-1) A1

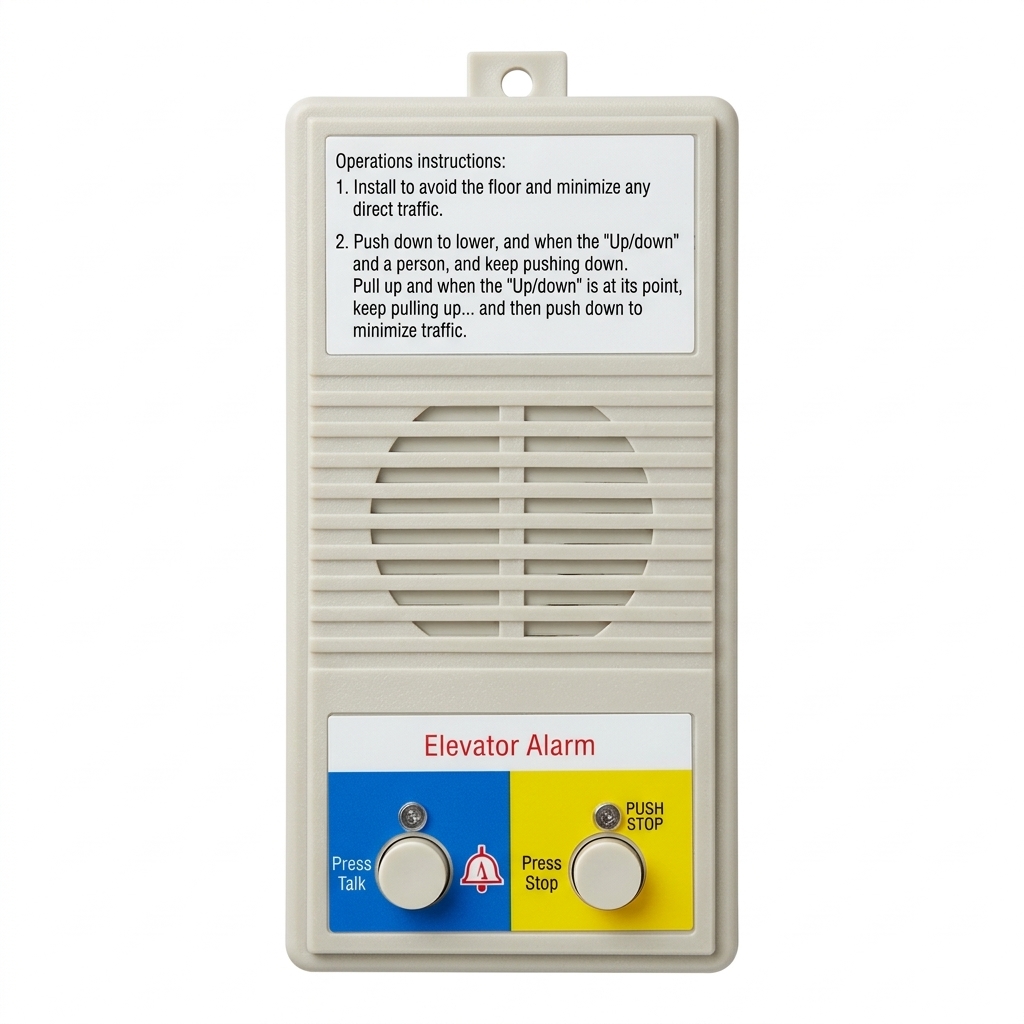

NKT 12(1-1) A2

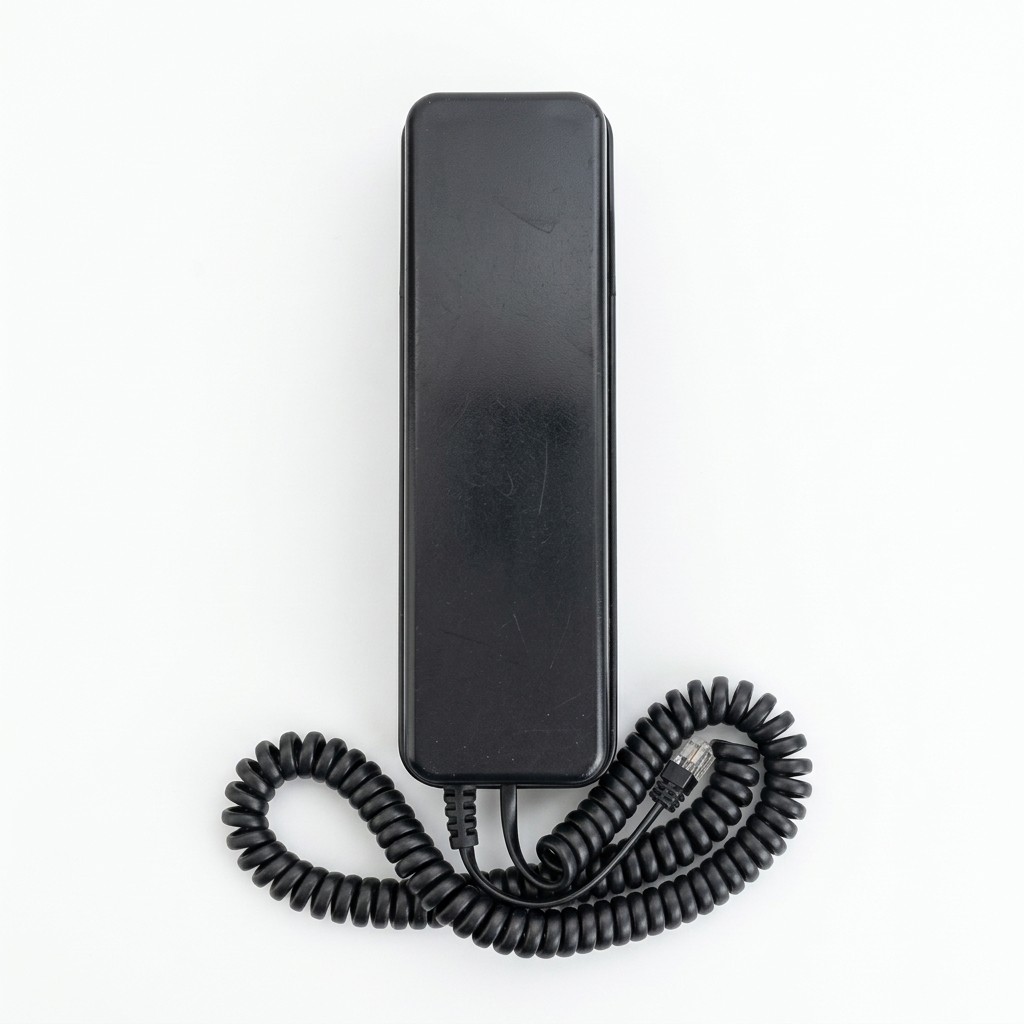

NKT 12 (1-1) AJ

Important Technical parameters for NKT 12

Parameter Details
Model NKT 12 (1-1) A1/ A2 / AJ
Operating System 4 wire Analogue Intercom
Operating Voltage 12 V DC (+/- 20%)
Operating current < 800 mA
Static Current 0 mA
Ambient Noise < 55 db
Environment Temperature -20 0 C to 55 0C
Relative Humidity 20% ~ 95%
Communication Distance Wire Area < 500 meters (0.75 sqmm) , < 1000 meters (1. 00 sqmm)
